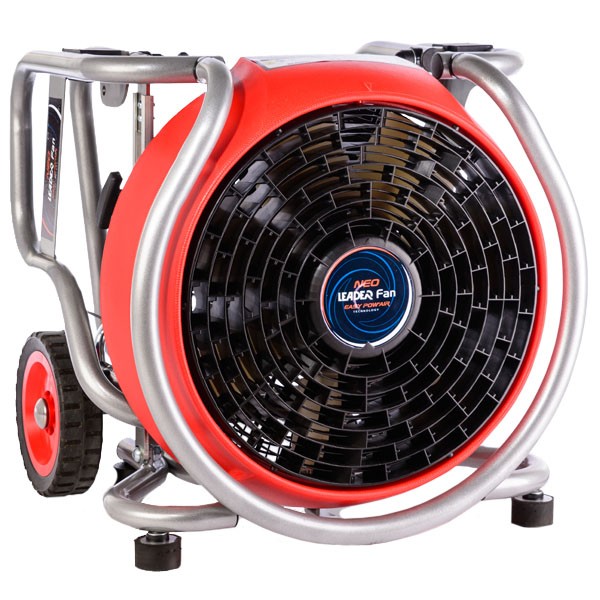

MT236 NEO

Product ID: #MT236NEO

CHARACTERISTICS


• Open air flow: 51 650 m³/h
• PPV air flow according to AMCA: 33 660 m3/h
• Weight (dry): 39,6 kg
• Dimensions: L x H x D 550 x 550 x 490 mm
• Propeller diameter: 420 mm
• Run time at full speed: 2h10
• Engine:
     - HONDA GX 160 engine (4-stroke)
     - Automatic engine cutout if oil runs out.
     - Assembly inspected and approved by Honda Motor Co., Ltd
• Engine power: 4.8 HP according to standard SAE J1349 of 2007
• Noise level: 93 dB at 3 m
• Ventilation type: PPV blowing
• Application: Single door, e.g. house, small apartment block
• -10° prop for negative tilt of fan

Availability : In stock.

Download BrochureTechnical Sheet 1Technical Sheet 2
Product Details
Size 550 (L) x 550 (H) x 490mm (D)
Weight 39.6 Kg
Manufacturer Leader

Description

FEATURES


A very concentrated and ultra-powerful jet of air due to an optimal combination of:
  • A high-strength propeller matched to the power of the engine
  • A red double-layer monobloc shroud made of reinforced high-density polyethylene
  • A high-tech composite grille

Positioning from 0.90 m to 6 m in front of a door without loss of power for:
  • more space to move about
  • less noise inside the building

Automatic optimal +10° tilt when handle raised

Precise tilt adjustment from +10° to +20° for optimization of direction of air stream up entrance steps

Protective frame with grey epoxy coating

Stable & easy to handle with large rear wheels

Compact for easy storage in vehicle trunks
