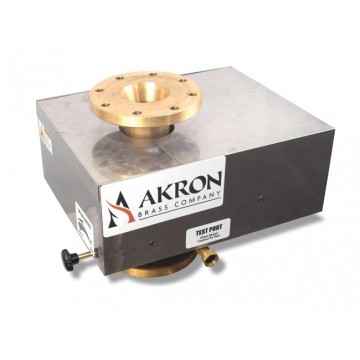

Akron Brass Style # 3531 Oscillating Flange
Akron Brass 3531 Oscillating Flange
Features and Specs:
• Maintenance-free polymer bearing (no ball bearings)
• Totally water powered (no electrical connections)
• Heavy-duty low friction loss brass waterway
• Stainless steel water drive turbine for long life performance
• Oscillation range: 30°, 60°, 90°, 115°, 140° and 165°
• Adjustable oscillation speed: 0-40 deg. / second
• Operating pressure: 50-250 psi (3 - 17 bar)
• Maximum flow and pressure: 1250 gpm (4750 lpm) @ 250 psi (17 bar) or 1500 gpm (5700 lpm) @ 180 psi (12.5 bar)
• Inlet & outlet: 4" 150#ASA flange
• Integrated test port allows testing of the Oscillating
Availability : In stock.
|
Description
Akron Brass 3531 Oscillating Flange is a unique maintenance-free polymer bearing design with high quality material construction and superior performance. The Akron 3531 Oscillating Flange is capable of flows up to 5700 lpm (1500gpm) at an oscillating range up to 165°. This oscillating flange has been designed, engineered, and tested to protect some of the world’s most valuable assets.
