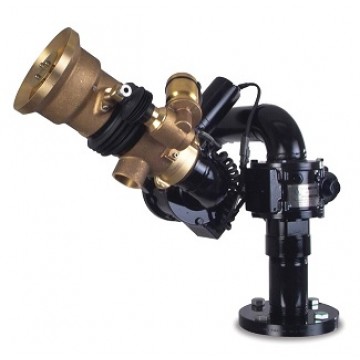

Akron Brass Style # 3491 Electric with # 4471 AkroFoam Nozzle

Product ID: #ABCSD34911016

3491 Severe-Duty, Electric Water Cannon with AkroFoam Nozzle

This Package Includes
• AkroFoam Master Stream Nozzle
• Logic Box
• Joystick
* All Australian Mine Specifications

Akron Brass Style # 3491 Severe Duty Water Cannon
Features:
• Purpose built for Australian Mine Water Carts
• Stainless Construction
• 320° Rotation
• 155° Elevation (+90°, -65°)
• Fast travel, 20°/ sec
• Pressures up to 200 psi/1400Kpa
• 24 volt motor options
• < 60 Mtr Reach at 2900 lpm

Akron Brass Style # 4471 Severe Duty Master Stream Nozzle
Features:
• All brass and stainless steel construction &
• Ideal for mining applications
• Exposed surfaces protected by heavy-duty, weather resistant bellows
• Metering Rate : -1%, 3%, & 6% for 350 & 500 gpm -1% & 3% for 750 & 1000 gpm
• Maximum Pressure: 200 psi/14 bar
• Maximum Motor Current Draw:
• 12 Volt Motor: -3 amps
• 24 Volt Motor: 1.5 amps

Availability : In stock.

Download BrochureTechnical Sheet 1Technical Sheet 2
Product Details
Size -
Weight 39.2 Kg
Manufacturer Akron Brass Company

Description

The Style # 3491 Severe-Duty, Electric Water Cannon is the bench mark of all mining mining monitors and is designed to withstand continuous operation while mounted on heavy-duty equipment like off-road fire, construction, mining, or landfill vehicles. Dusty, dirty, outdoor, and continuous vibration applications are what this Akron Brass severe-duty monitor is designed to survive. A selection of nozzles are also available including, solid stream ,Style 4462 electric fog / stream nozzle and the 4471 Akron foam educting nozzle. Excellent for fixed site non-classified wash down or fire protection. A two year Mining warranty is proof of how tough we know this monitor really is. Akron Brass AkroFoam Master Stream Nozzle The Akrofoam nozzles are self-educting master stream nozzles designed for educting foam at flow rates up to 1000 gpm (4800 lpm). Contact a distributor today to learn more about our foam nozzles.
